Biosound Esaote CA621 Convex Array Vascular 40mm Transducer

Lead Time: 2-4 days
Warranty: 60 days
Description
Biosound Esaote CA621 Convex Array Vascular 40mm Transducer /Echo scanner

1. Type:convex array
2. Frequency: 5-1.8 MHz
3. Compatible system: DU3/4/Caris Plus,My Lab15/My Lab 20/My Lab 25/My Lab 30
4. Application: Vascular, Abdominal, OB/GYN ,Cario Fetal
5. Condition: original, in good working condition
6. With 60 days warranty


Other Biosound probes we can offer:


Brand Model Compatible System

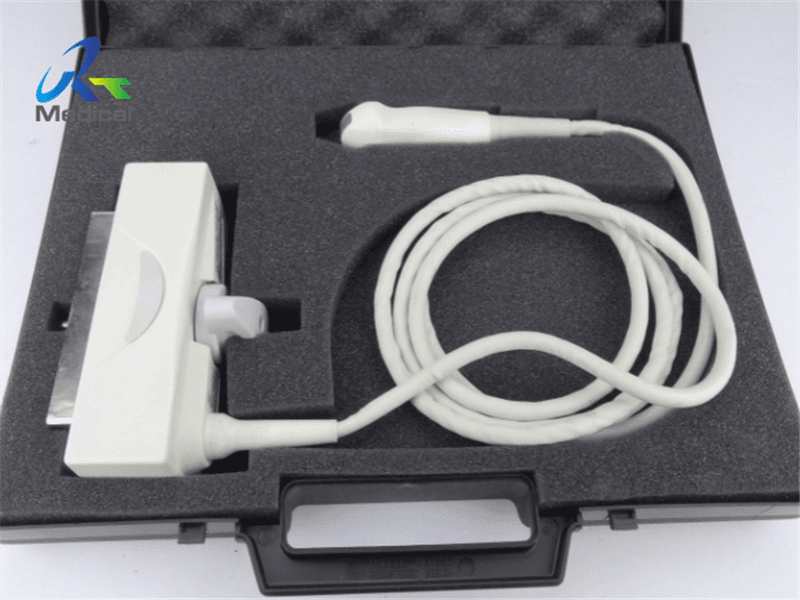

Biosound Esaote CA123 DU3/4/MyLab series
Biosound Esaote CA421 DU3/4/Caris Plus/MyLab series

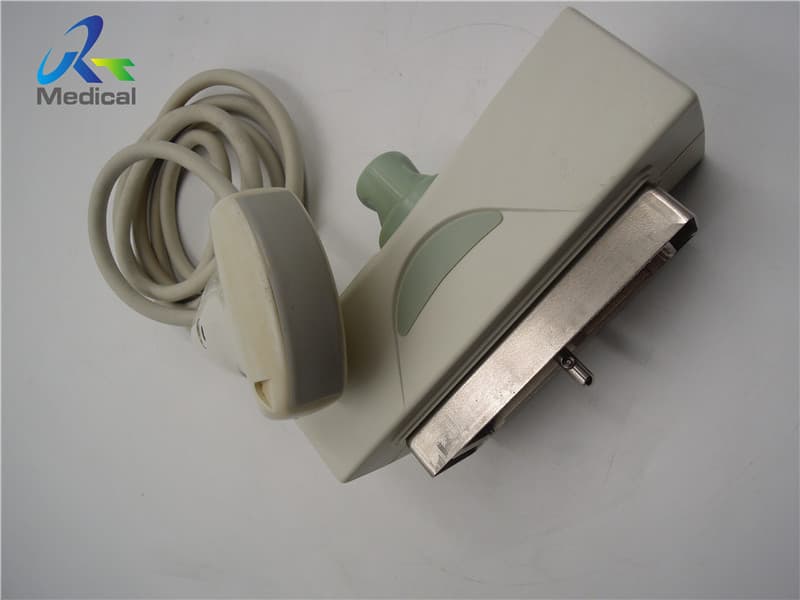

Biosound Esaote CA431 MyLab5/20/25/25Gold/30Gold/40/50/50XV/70XV

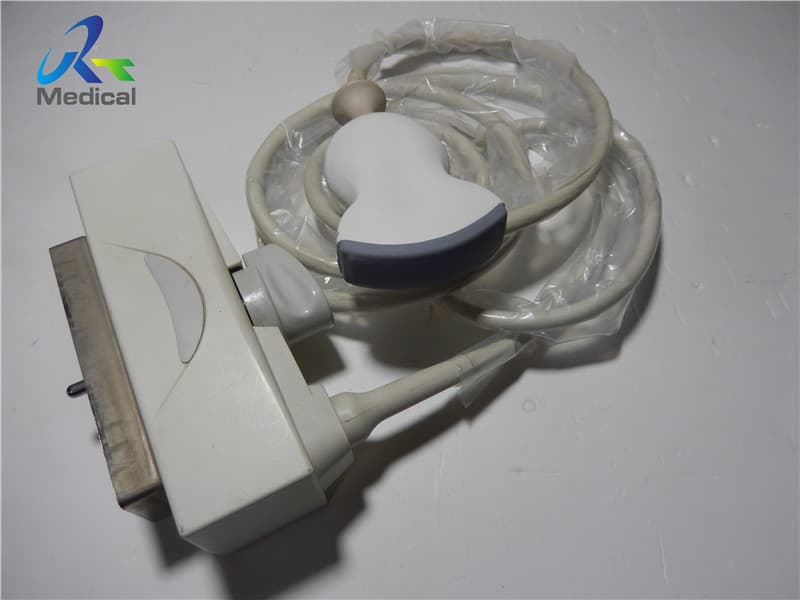

Biosound Esaote CA541 MyLab 5/MyLab 20/MyLab 25/MyLab 25Gold/MyLab 30Gold/MyLab 40/MyLab 50/MyLab 50XV
Biosound Esaote CA621 DU3/4/Caris Plus/My Lab15/20/25/30

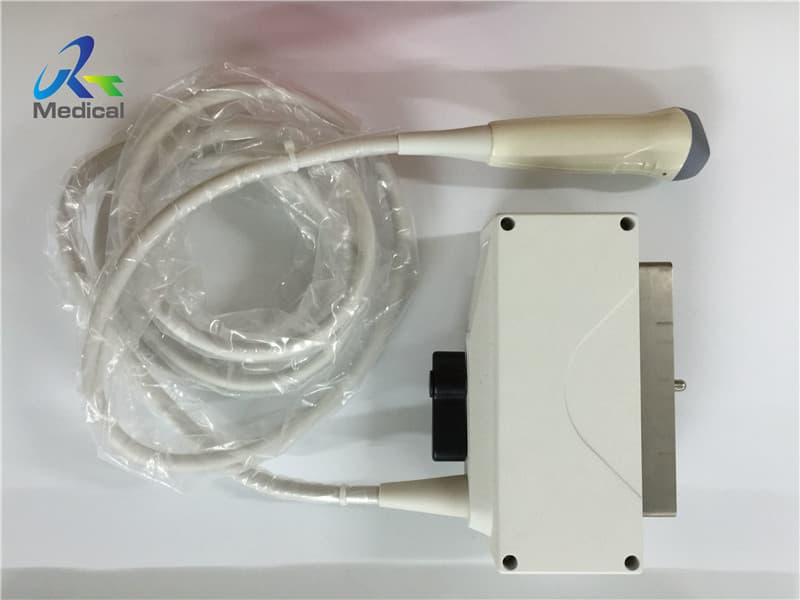

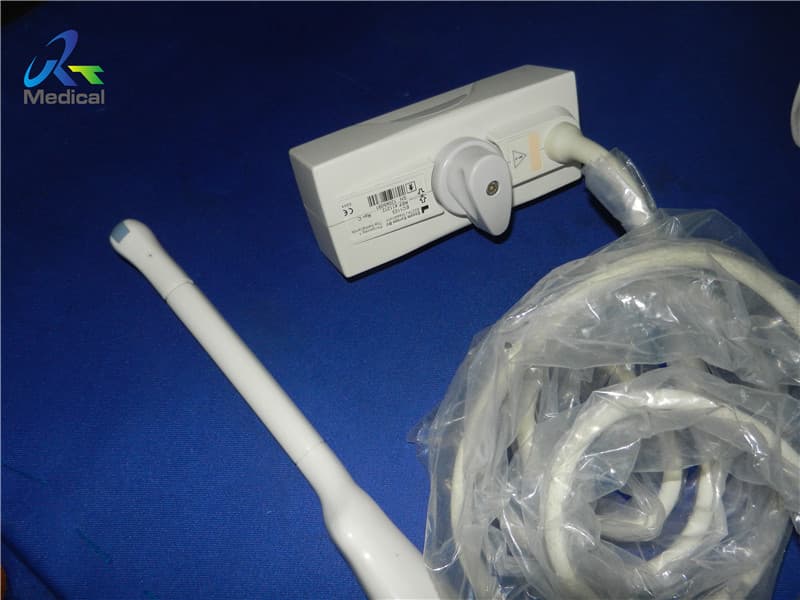

Biosound Esaote EC1123 MyLab 5/20/25 Gold/40/50

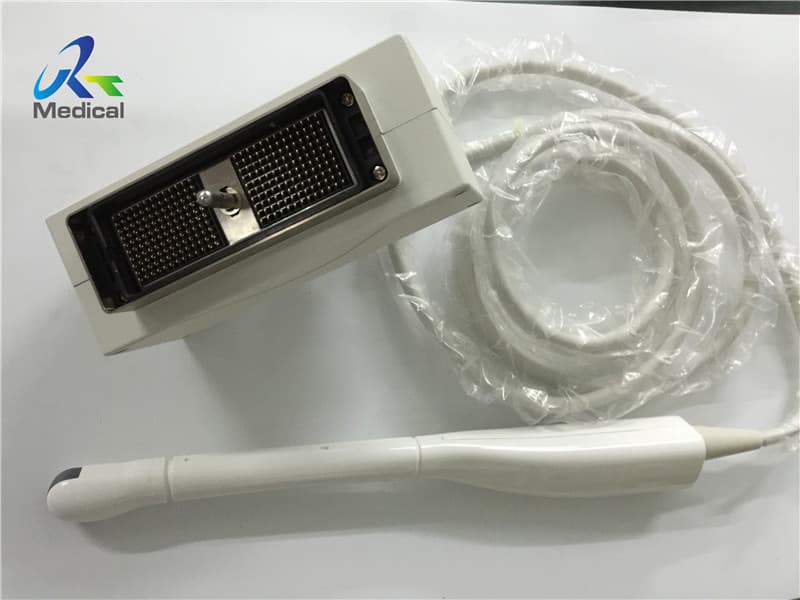

Biosound Esaote EC123 DU3/DU4/Caris Plus/My Lab15/20/25/30
Biosound Esaote LA424 Mylab series
Biosound Esaote LA522E Technos MP/ MPX/ Partner/ Megas CVX/ GPX/ Caris Plus/ MyLab15/20/25/30/50/ 70
Biosound Esaote LA523 Technos/ Megas/ Caris/ Caris Plus/ MyLab 50/ Mylab 70
Biosound Esaote PA220E Megas/ Caris Plus/ Technos
Biosound Esaote PA230E Mylab5/23/25/Megas/Caris Plus


Knowledge point:

Multi-frequency probe


Multi-frequency probe is a new development of pulse-echo transducer. The probe can send out several different ultrasonic pulses, so as to cover the near field with high-frequency ultrasound, the intermediate-frequency ultrasound to cover the transition zone between the far and near fields, and the low-frequency ultrasound to cover the far field. The unit multi-frequency probe is to bond multiple layers of piezoelectric ceramics (or polymer piezoelectric materials) to each other, and lead wires from the electrodes between each layer to obtain multiple frequency ultrasonic pulse emission through exciting different layers . The digital coding of the multi-frequency probe is simple but easy to lose the signal.

Wide-band probe

The wide-band probe send out continuous ultrasonic pulse signals, so that the ultrasonic signals in a certain frequency range can be transmitted and received without gaps.

Ultra-wideband probe

On the basis of the wide-band probe, the ultrasonic signal range that the probe receives and transmits is further expanded. The signal of the ultra-wideband probe is completely carried out at the moment of reception, and is fully digitally coded and amplified to ensure that the signal is not distorted and expand the dynamic range of the signal.
