Compatible Ultrasound Transducer

Biosound Esaote EC123 Micro-Convex Array Ultrasound Transducer

 Delivery time: 2-4 days
 Warranty: 1 year
Description

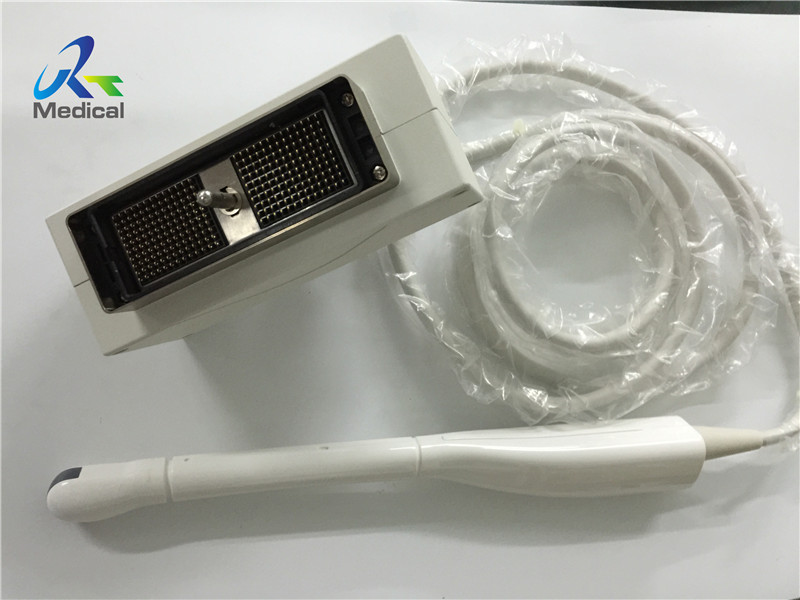

EC123 Biosound Esaote Micro-Convex Array Ultrasound Transducer Probe /Patient Ultrasonic Probe

Frequency: 9-5 MHz
Compatible system: DU3/DU4/Caris Plus/My Lab 15/My Lab 20/My Lab 25/My Lab 30
Application: Transvaginal , transrectal
Condition: new compatible, fully tested and qualified one in excellent working condition
Delivery time: 2-4 days
Warranty: 1 year

Other Biosound probes we can offer:


Brand Model Compatible System

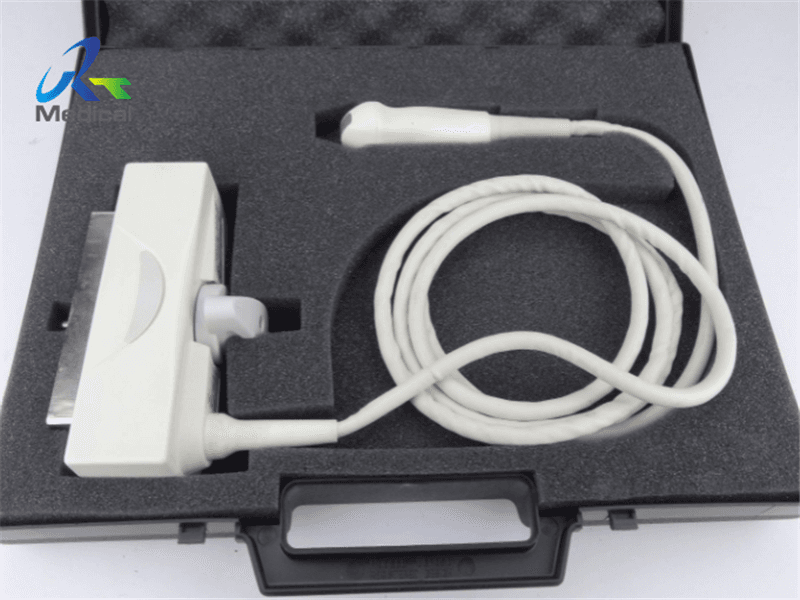

Biosound Esaote CA123 DU3/4/MyLab series
Biosound Esaote CA421 DU3/4/Caris Plus/MyLab series

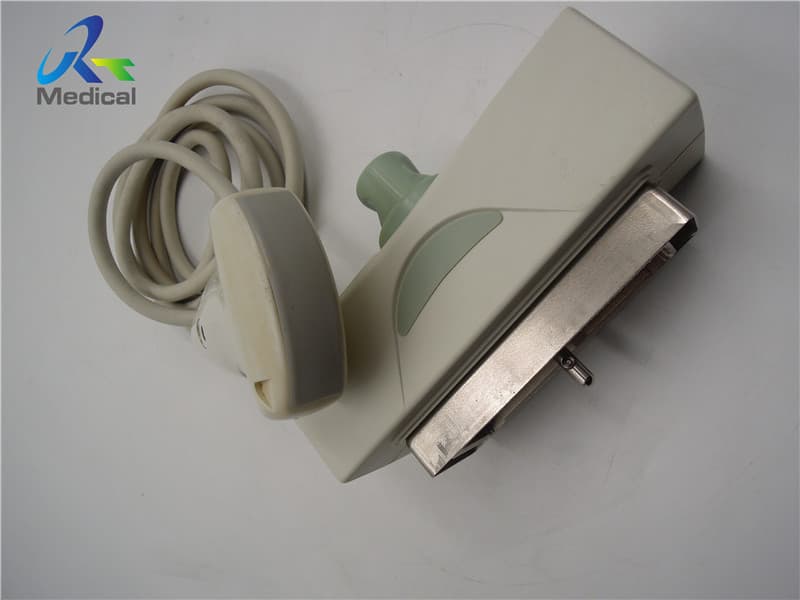

Biosound Esaote CA431 MyLab5/20/25/25Gold/30Gold/40/50/50XV/70XV

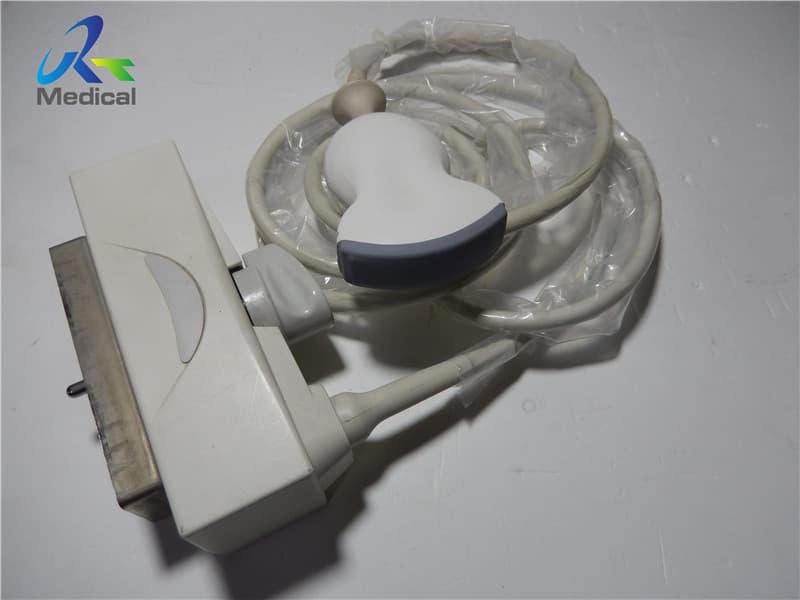

Biosound Esaote CA541 MyLab 5/MyLab 20/MyLab 25/MyLab 25Gold/MyLab 30Gold/MyLab 40/MyLab 50/MyLab 50XV

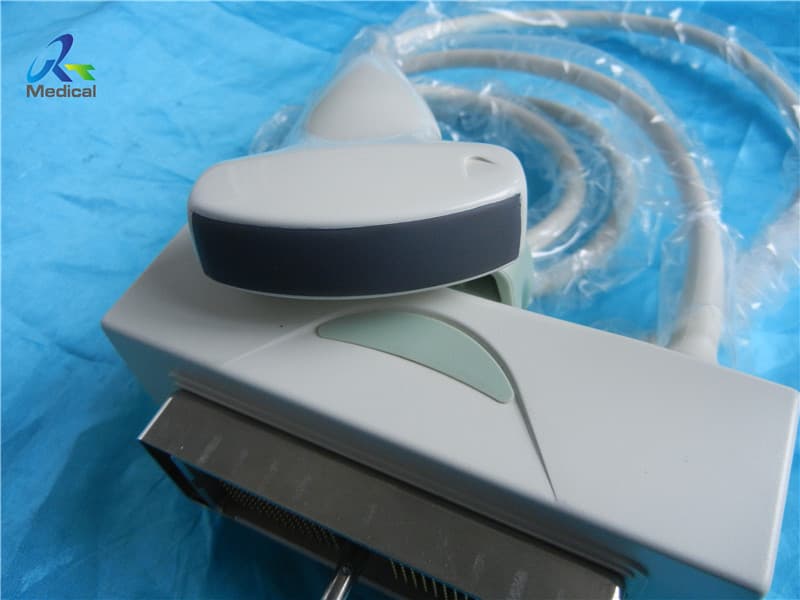

Biosound Esaote CA621 DU3/4/Caris Plus/My Lab15/20/25/30

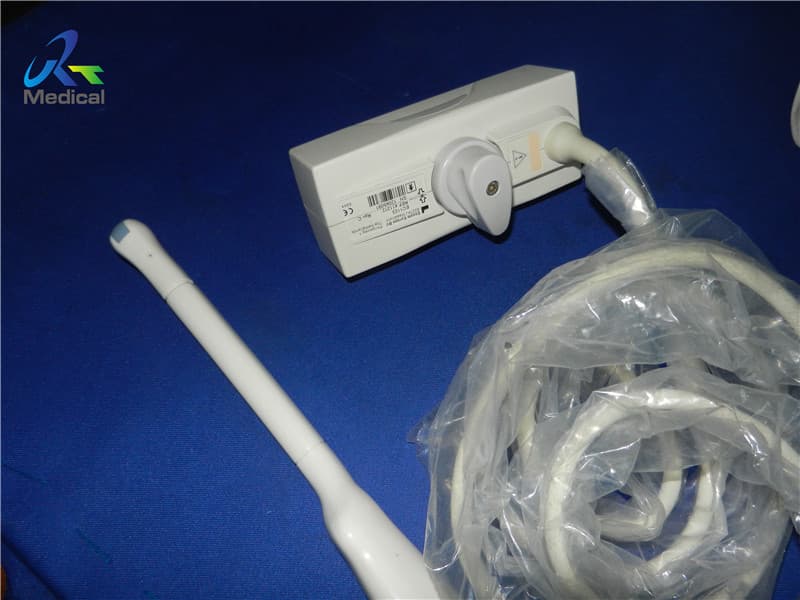

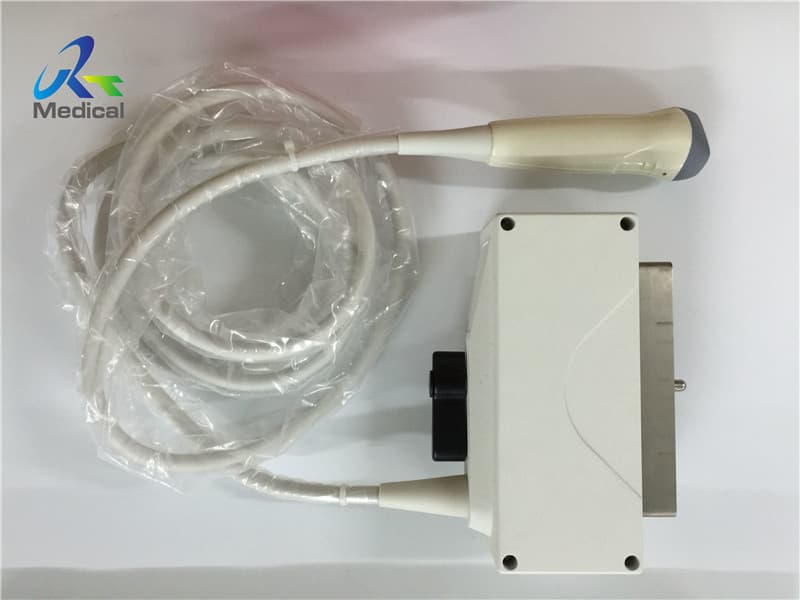

Biosound Esaote EC1123 MyLab 5/20/25 Gold/40/50
Biosound Esaote EC123 DU3/DU4/Caris Plus/My Lab15/20/25/30
Biosound Esaote LA424 Mylab series
Biosound Esaote LA522E Technos MP/ MPX/ Partner/ Megas CVX/ GPX/ Caris Plus/ MyLab15/20/25/30/50/ 70
Biosound Esaote LA523 Technos/ Megas/ Caris/ Caris Plus/ MyLab 50/ Mylab 70
Biosound Esaote PA220E Megas/ Caris Plus/ Technos
Biosound Esaote PA230E Mylab5/23/25/Megas/Caris Plus


Warnings and cautions of ultrasonic probe

The ultrasonic probe is a valuable device. It must be careful in the process of use. Avoid dropping, impact, or abrasion to transducers.
When installing or removing the probe, first switch off the power and then operate it carefully.
Avoid rapid and extreme temperature changes, as well as lengthy exposure to direct sunlight or a strong ultraviolet light source.
Do not use sharp objects to penetrate the acoustic lens.Once the acoustic lens is damaged, the coupling gel is easy to enter the interior of the probe and damage the piezoelectric element.
Do not soak transducer in any liquid above the recommended level as stated in the user manual for your system, please operate according to the manufacturer's instructions, otherwise it will lead to circuit failure or even burn out.
Do not disinfect at high temperature, because the probe is equipped with piezoelectric ceramics, high temperature will weaken the effect.
Before use, carefully check whether the housing and cable are damaged, so as to prevent the probe from high voltage injury.
After the probe is used, the residual coupling gel on the probe must be wiped clean to prevent rats or other animals from gnawing the lens.
